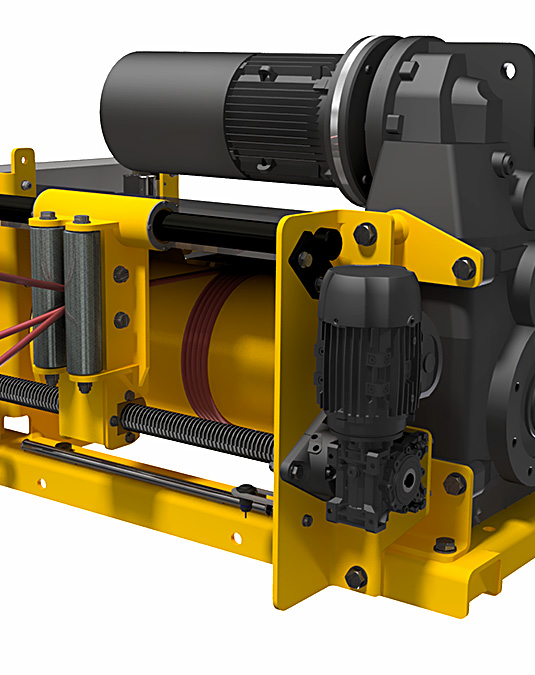

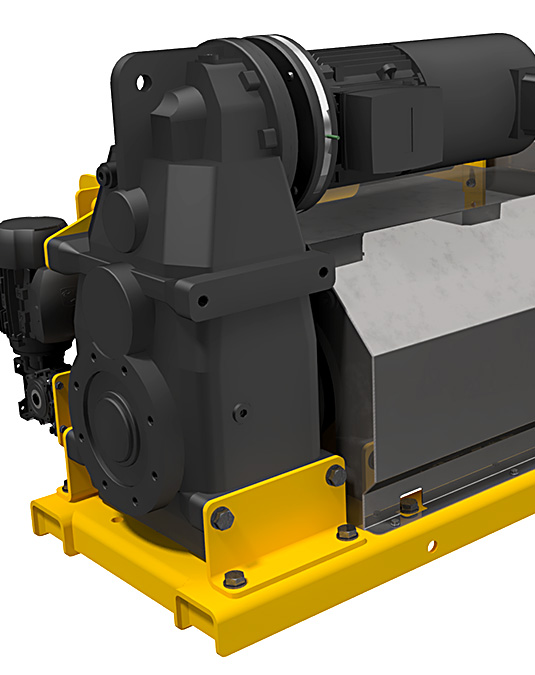

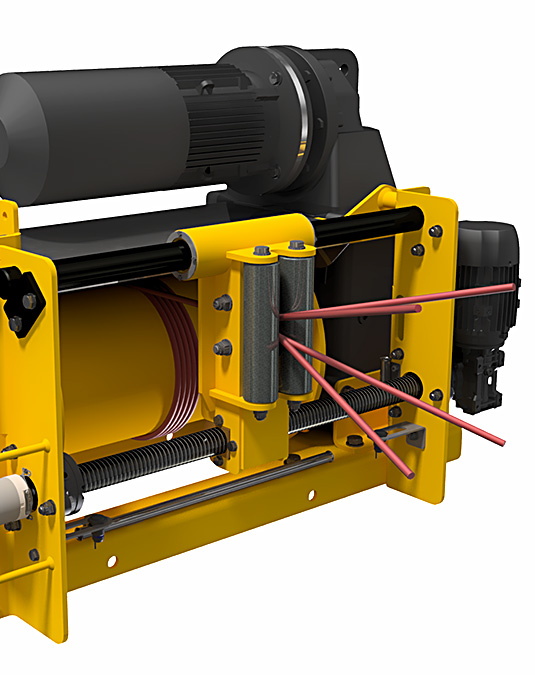

15kN DP Tagline System

The fully automated HARCO DP Tagline System is designed to handle both light and heavy loads on-shore.
The system is controlled by our patented software, developed by our key experts, with hands-on experience, and operated by our custom radio controller.
This enables simple and intuitive operation of complex tasks - mitigating the risk of operator failures.

Can be used both on- and offshore for:
· Taglines for main component exchange

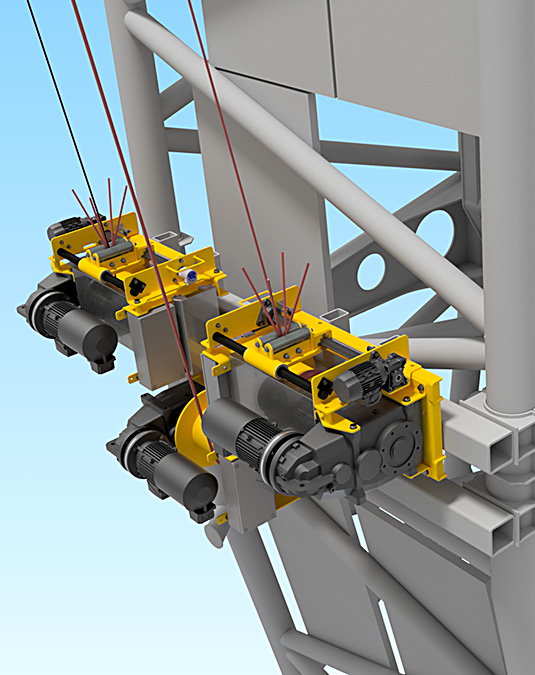

· Taglines for installation of wind turbines (orientation of towers, installation of nacelle, installation of blades)
· Taglines for rotor lift
· Orientation of tower during loadout
· Construction of buildings (during lifts)
· Suspended load orientation control within all industries


Manual mode
Manual mode is available by joystick.

Dynamic Position Mode (Auto)
In auto mode, both winches consequently maintain the position reference ensuring a stable non-rotation load.
Dynamic movements are compensated by directing torque to the winch with the highest load.
When/if the load is to be rotated, rotationis performed by adjusting the position setpoint simply by operating the joystick
Technical specifications:
· Fully electrical units
· Failsafe brake system (electromagnetic DC brakes)
· Proven technology
· Minimum daily maintenance required
· CE-marked
· Self-contained Steel frame

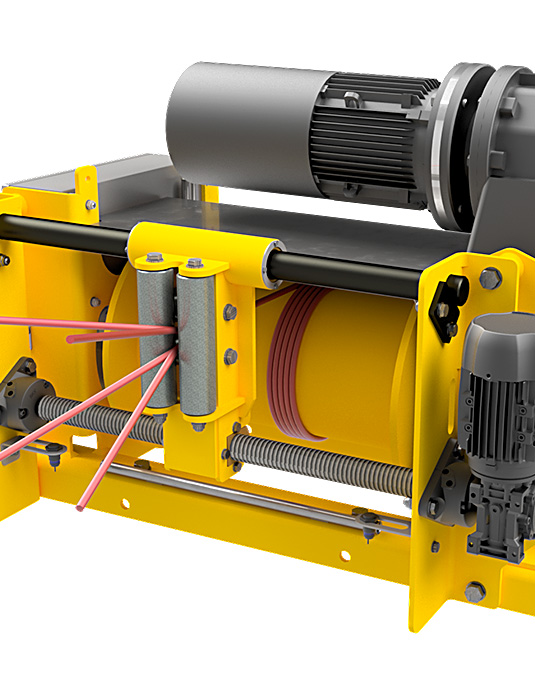

· Levelwind for optimized wire spooling
· Winch speed: 21 meter / min - Full load
· Winch capacity: 1kN-15kN pull force
· Brake capacity: 19,5kN brake force
· Winch motor: 3kW AC asynchronous motor - 3x380/480 VAC @ 50/60Hz IP 56
· IP 56 switchboard
